Signal Spectrum Analyzer
Created with Pixso. N9032B PXA Signal Analyzer 2 Hz To 50 GHz For 5G Carrier Aggregation / Amplifier Test

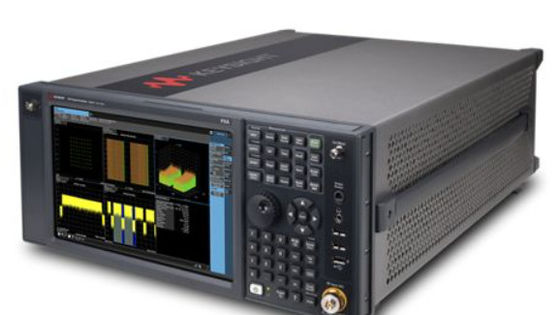

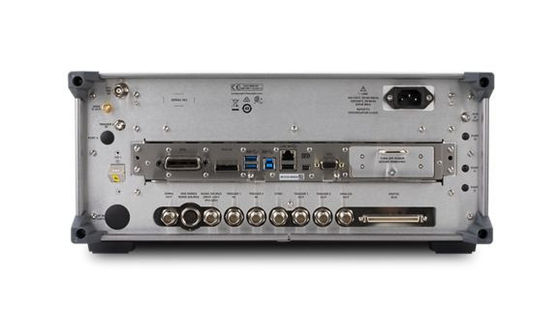

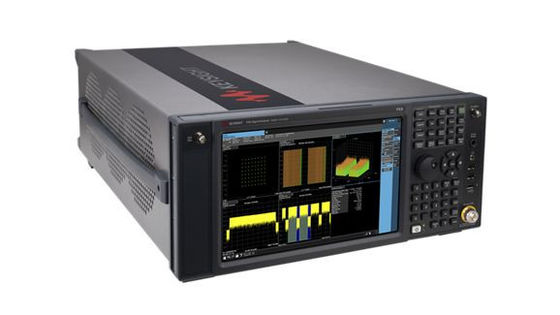

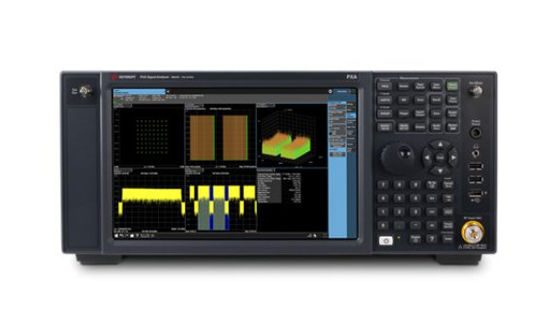

N9032B PXA Signal Analyzer 2 Hz To 50 GHz For 5G Carrier Aggregation / Amplifier Test

Brand Name: keysight Technologies
Model Number: N9032B
MOQ: 1
Price: Negotiation
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Frequency:
2 Hz To 50 GHz
DANL @1 GHz:
-174 DBm
Maximum Analysis Bandwidth:
2 GHz
Maximum Real-Time Bandwidth:
2 GHz
Phase Noise @1 GHz (10 KHz Offset):
-136 DBc/Hz
Type:
Benchtop
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

50 GHz PXA Signal Analyzer

,

5G Carrier Aggregation PXA Signal Analyzer

,

Amplifier Test PXA Signal Analyzer

Product Description



Highlights

Built to address high-bandwidth applications like 5G carrier aggregation and amplifier test, 802.11ax/be, satellite, radar, and electronic warfare (EW), Keysight’s N9032B PXA X-Series signal analyzer delivers the widest analysis bandwidth in its class. Our measurement software applications help you optimize your most complex designs and stay up to date on the latest requirements. Get the best swept displayed average noise level (DANL), error vector magnitude (EVM) performance, and sensitivity in a compact 4U-high form factor.

  • Ready-to-use PathWave X-Series measurement applications and PathWave 89600 vector signal analysis software to ensure standards compliance and more
  • Up to 2 GHz bandwidth option available on all models
  • Superior spur searching speed with industry-best swept DANL
  • Industry-best EVM residuals and sensitivity
  • Drop-in replacement for rack-mounted spectrum analyzers and a compact 4U-high form factor
  • Order-of-magnitude improvement in accuracy with the U9361 RCal receiver calibrator



Key Specifications



Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
Maxmum Real-Time Bandwidth
Phase Noise @1 GHz (10 kHz offset)
Type
2 Hz to 50 GHz
-174 dBm
2 GHz
2 GHz
-136 dBc/Hz
Benchtop
  • Bandwidth Options:
    1 GHz
    1.5 GHz
    2 GHz
    DANL @1 GHz:
    -174 dBm
    Form Factor:
    n/a
    Frequency:
    2 Hz to 50 GHz
    Frequency Options:
    8.4 GHz
    13.6 GHz
    26.5 GHz
    44 GHz
    50 GHz
    Mixers to 1.1 THz
    Height:
    4U
    Maximum Analysis Bandwidth:
    2 GHz
    Maximum Frequency:
    50 GHz
    Maximum Real-Time Bandwidth:
    2 GHz
    Performance Level:
    ◆◆◆◆◆◇
    Phase Noise @1 GHz (10 kHz offset):
    -136 dBc/Hz
    Type:
    Benchtop
    TOI @1 GHz (3rd Order Intercept):
    +22 dBm
