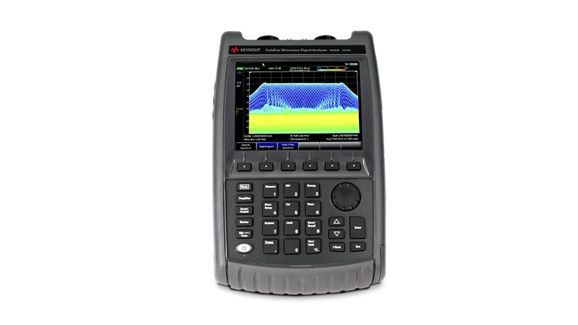

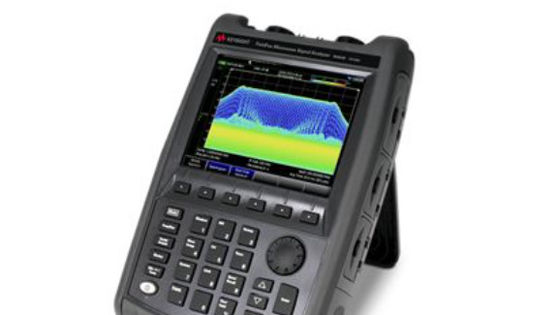

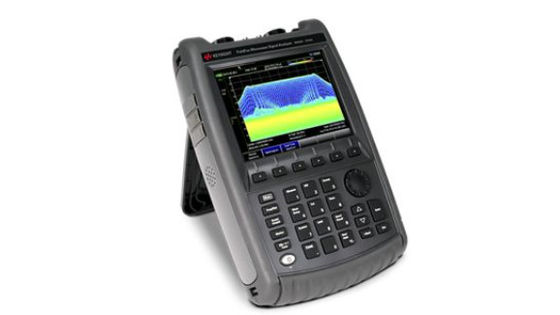

N9963B FieldFox Microwave Spectrum Analyzer Handheld 54 GHz portable
Description of N9963B FieldFox Microwave Spectrum Analyzer
Is equipped to handleur toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the software-enabled FieldFox configuration that best meets your needs.
Features of N9963B FieldFox Microwave Spectrum Analyzer
Key Specifications of N9963B FieldFox Microwave Spectrum Analyzer
Bandwidth:120 MHz
Form Factor:Handheld
Maximum Analysis Bandwidth:120 MHz
Maximum Frequency:54 GHz
Measurement Functions:Signal analysis Real-time spectrum analysis
SA Start Frequency:5 kHz
Spectrum Analyzer:Yes - Standard
Type:Spectrum Analyzer
Vector Network Analyzer:No
N9963B FieldFox Handheld Software
Configure your FieldFox handheld analyzer to meet your specific measurement needs with powerful software options engineered to deliver precise measurements in the field.
List of Options of N9963B FieldFox Microwave Spectrum Analyzer
|
N9963B-030 |
Remote control capability |
|
N9963B-208 |
USB power sensor measurements versus frequency |
|
N9963B-209 |
Extended range transmission analysis (ERTA) |
|
N9963B-220 |
Full-band tracking generator |
|
N9963B-235 |
Pre-amplifier |
|
N9963B-236 |
Interference analyzer and spectrogram |
|
N9963B-238 |
Spectrum analyzer time gating |
|
N9963B-302 |
USB power sensor support |
|
N9963B-307 |
GPS receiver |
|
N9963B-309 |
DC bias variable-voltage source |
|
N9963B-310 |
Built-in power meter |
|
N9963B-312 |
Channel scanner |
|
N9963B-320 |
Reflection measurements (return loss, VSWR and scalar measurements) |
|
N9963B-330 |
Pulse measurements |
|
N9963B-350 |
Real-time spectrum analyzer (RTSA) |
|
N9963B-351 |
I/Q analyzer |
|
N9963B-352 |
Indoor and outdoor mapping |
|
N9963B-355 |
Analog demodulation |
|
N9963B-356 |
Noise figure measurements |
|
N9963B-358 |
EMF measurements |
|
N9963B-370 |
Over the air LTE FDD measurements |
|
N9963B-377 |
Over the air 5G TF measurements |
|
N9963B-378 |
Over-the-air (OTA) 5G NR measurements |
|
N9963B-371 |
Over the air LTE TDD measurements |
|
N9963B-361 |
EMl measurements |
|
N9963B-353 |
IQ streaming |
Our service:
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
