| Brand Name: | Keysight/Agilent |
| Model Number: | DAQ970A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

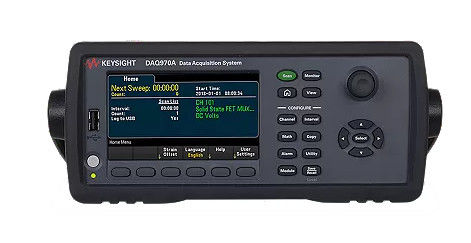

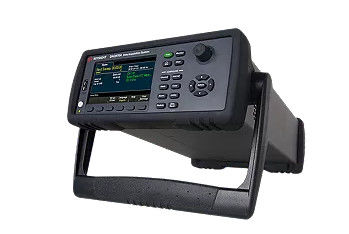

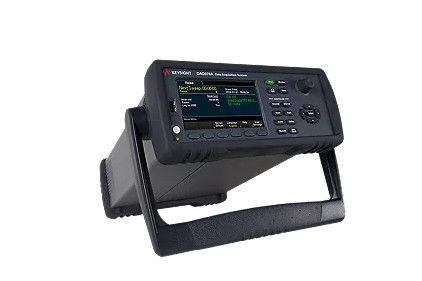

Keysight Agilent DAQ970A Data Acquisition System
Get the next-generation data acquisition (DAQ) system with a three-slot mainframe and your choice of nine plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software or use the intuitive graphical front panel with task-oriented, self-guiding menus. The DAQ970A / DAQ973A data acquisition systems have high-quality switching and an advanced 6.5 digit multimeter built-in that allows you to measure accurately.
Highlights of Keysight Agilent DAQ970A Data Acquisition System
Key DAQ970A and DAQ973A Capabilities
Types of measurements: Temperature, voltage, current, resistance, frequency, diode and capacitance, direct strain and bridge strain
Digital Input/Output: Up to 48-bits
Analog output: -10 V to +10 V, 20 mA
Multiplexing: Maximum 120 (1-wire), 60 (2-wire) channels
Matrix switching: Maximum 96 cross points
General purpose: Maximum 60 switches
RF multiplexing: Maximum 24 channels, 2 GHz
Simultaneous sampling: Maximum 12 channels, up to 800 kSa/s, 24-bit resolution
Interface: Graphic web, USB front/rear, LAN/LXI, GPIB (only for DAQ973A)
List of Plug-in Modules of Keysight DAQ970A
Standard connectivity to the PC

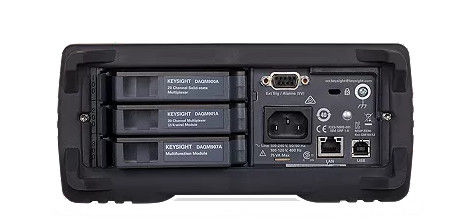

The DAQ970A has built-in Gigabit LAN and USB 2.0. With the standard LAN connection, you also get the added benefit of a graphical Web interface for easy configuration of measurements and monitoring of results using a standard Web browser. In addition to LAN and USB, the DAQ973A comes with a built-in GPIB interface.
Built-in signal conditioning to get your job done faster
Whether you need to measure temperature, ac/dc volts, resistance, frequency, or current, the DAQ970A/DAQ973A can handle it. The internal auto-ranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows complete per channel configurability for maximum flexibility and quick, easy set up. It’s like having an independent, high-performance DMM behind each channel
The built-in graphical Web interface provides easy access and control of the instrument using a Web browser such as Chrome and Internet Explorer. Using this interface, you can configure measurements, define and execute scan lists, or monitor measurement results from anywhere on the network. Simply enter the instrument host name or IP address into the browser URL and gain access to the instrument’s front panel capabilities.
• Specify per channel measurement configuration
• Monitor measurement readings
• Define and execute switch scans
• View error queue
• View and save data
• View instrument information like module configuration, relay counts, firmware revisions, and more
Additionally, since the Web interface is built into the instrument, you can access it on any operating system that supports a Web browser without having to install any special software. Password protection and LAN lock out are also provided to limit access. The graphical Web interface makes it easy to configure measurements, set up and execute scans or troubleshoot your designs from anywhere on the network.

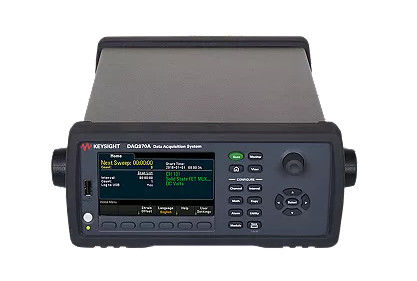

Large 4.3” color display for ease of setup, configure and viewing data
The DAQ970A/DAQ973A 4.3” graphical color display and soft keys are designed to be intuitive for easy configuration and measurement displays in multiple formats. You can view the measurements in numeric digit, bar graph, trend chart and histogram, giving you a quick overview of your measurement.
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
|
|
