3.Standard 10 MHz analysis bandwidth

4.Optional 40 or 80 MHz analysis bandwidth to capture & measure complex signals

5.-78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth

6.Phase noise optimization

7.Full detector suite

8.160 resolution bandwidth settings (10% steps)

9.Typical Performance @ 1 GHz: Dynamic range (-155 dBm DANL, +19 dBm TOI, -118 dBc/Hz phase noise at 10 kHz

offset; Accuracy (±0.19 dB absolute amplitude accuracy, ±0.11 dB frequency response)

10.2 dB step attenuator

11.FFT and swept measurement modes

12.Gated sweep

13.Power Suite one-button power measurements

14.EMI measurements with CISPR compliant bandwidths and detectors

The Agilent E4443A is an instrument in our PSA series of modern high performance spectrum analyzers with universal single key power measurement capabilities for 2G/3G applications and a variety of measurement special components. The PSA series combines these specialized components with powerful measurement performance to meet the general and highly specialized signal analysis needs of aerospace/defense, wireless communications and other industries. PSA series is
Spectrum analysis offers a new platform with exceptional overall performance and significant improvements in accuracy, dynamic range, sensitivity, resolution and speed. Agilent E4443A is a 3Hz-6.7GHz model in the PSA series. It provides high performance spectrum analysis at a low price. New performance standards have been established with the features listed below.

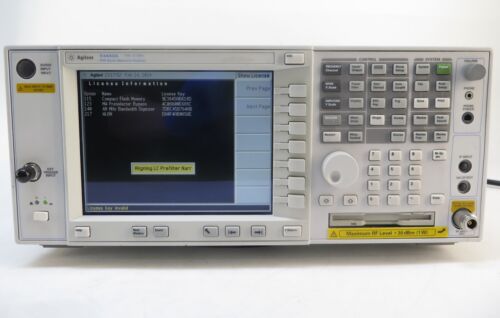

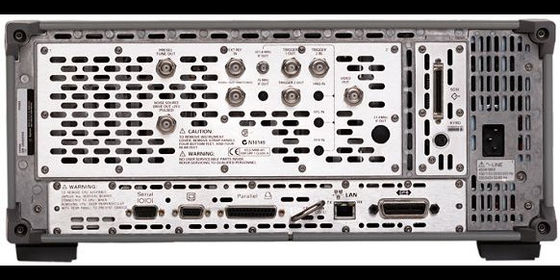

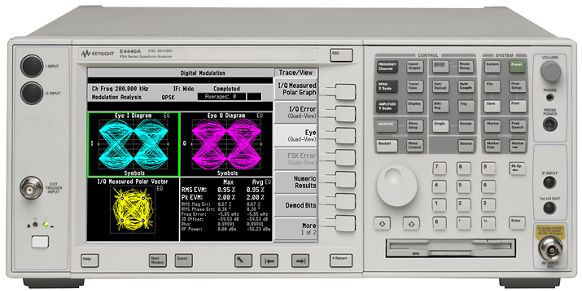

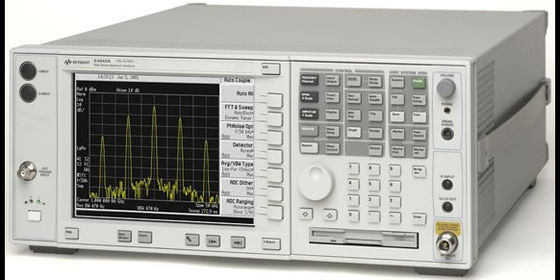

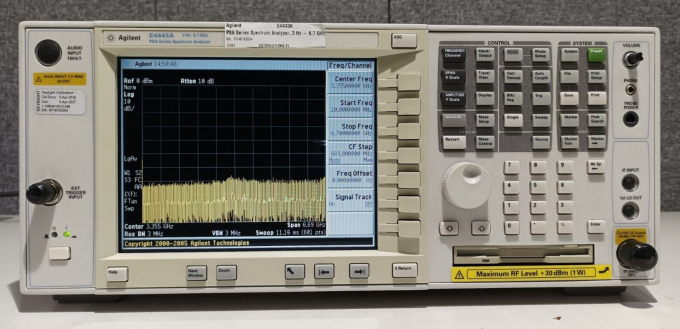

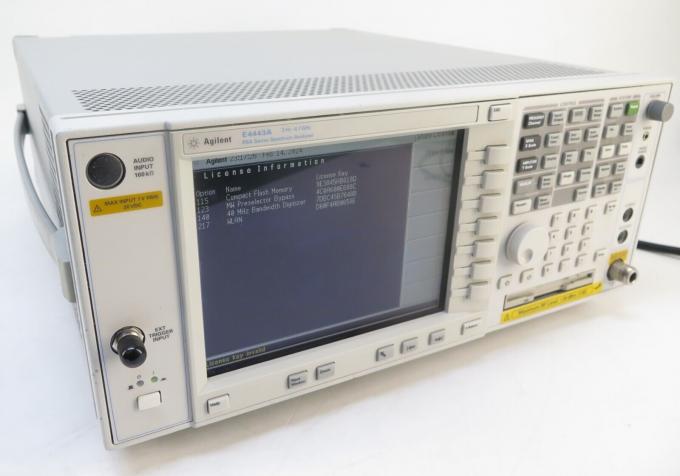

Agilent E4443A Spectrum Analyzer 6.7GHz

Agilent E4443A Spectrum analyzer The E4443A is made by Agilent 6.7 GHz spectrum analyzer. Spectrum analyzers measure the known and the unknown The spectral power of the signal. Spectrum analyzers collect information, such as input The amplitude of a signal compared to its frequency. As a frequency analyzer, spectrumThe main purpose of the analyzer is to record and analyze the electrical input signal and its the spectral component of his signal.

Agilent E4443A offers up to High performance spectrum analysis at 6.7 GHz with powerful one-click measurement
Volume, multiple feature sets as well as flexibility, speed, accuracy and dynamics Range of leading combinations.Measurement from millimeter wave and phase noise to clutter Scatter search and modulation analysis, PSA series for cellular and emerging wireless R&d and manufacturing engineers in the fields of communications, aerospace and defense For unique and comprehensive high performance solutions​
