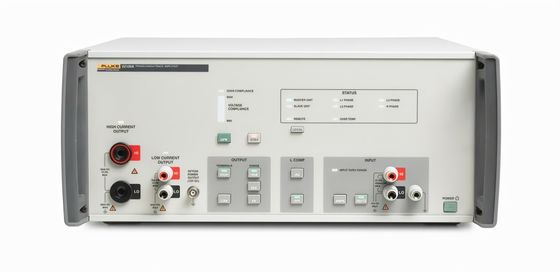

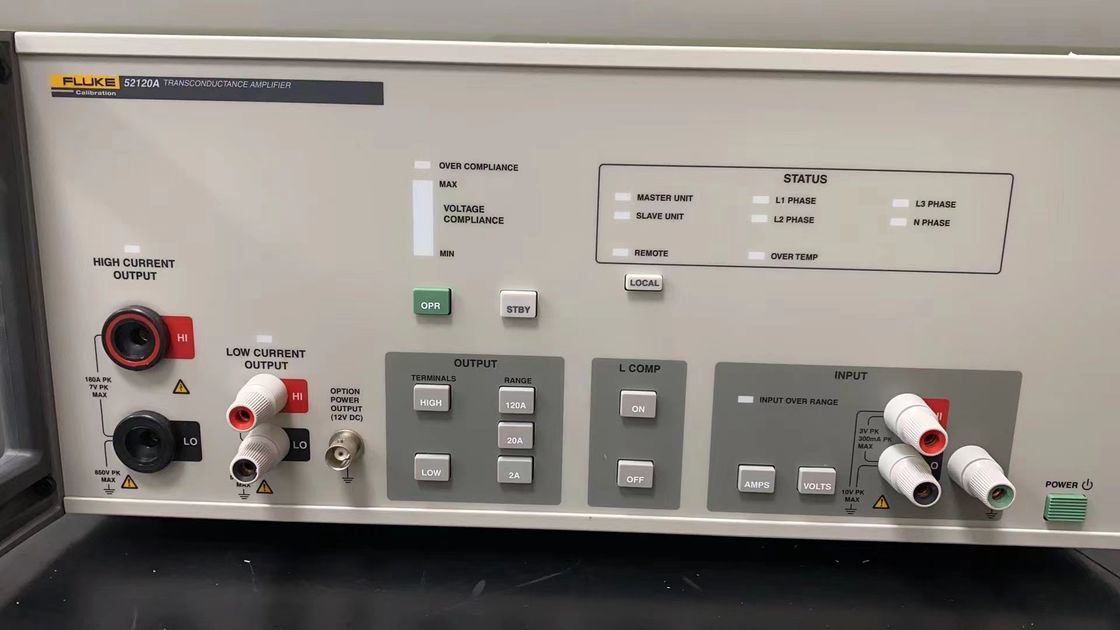

Fluke 52120A Transconductance Amplifier tested in full working conditions

Name: Fluke 52120A Transconductance Amplifier tested in full working conditions
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 52120A
Price: Negotiable USD
Availability: InStock

Brand Name:	Fluke
Model Number:	52120A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

ISO:17025 Accredited Calibration

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Name:

Transconductance Amplifier

Material:

Metal And Plastic

Output Ranges:

2 A, 20 A, 120 A (100 A Dc)

Input Current Range:

200 MA, 200 MA, 120 MA (100 MA Dc)

Current Gain:

10, 100, 1000

Input Voltage Range:

2 V, 2 V, 1.2 V (1.0 V Dc)

Input Voltage:

100-240VAC

Transconductance:

1,10,100 Siemens

Frequency:

10 MHz

Supply Ability:

in stock

Highlight:

Full Working Conditions Transconductance Amplifier

52120A Transconductance Amplifier

Fluke 52120A Transconductance Amplifier

Product Description

Fluke 52120A Transconductance Amplifier tested in full working conditions

Description of Fluke 52120A

Expand the workload capability of your power and electrical calibrators

The Fluke Calibration 52120A Transconductance Amplifier supplies dc current up to 100 amps and ac current up to 120 amps, at accuracies to 140 ppm. Using accessory coils, it can generate 3,000 or 6,000 amps. Three 52120As connected in parallel can output up to 360 amps. Inductive drive capability of 1 mH and compliance voltage of 4.5 volts support a wide range of applications.

52120A performance at a glance

Industry-leading amplifier accuracy:
- 140 ppm ac (used with 61XXA Electrical Power Standard or 5730A)
- 350 ppm ac (used with dc/lf calibrator
- 160 ppm dc (used with dc/lf calibrator
Frequency: DC to 10 kHz
Burden voltage (compliance): 4.5 V @ 120 A
Inductive drive capability: 1 mH load
Output ranges: 2 A, 20 A, 120 A
Input ranges: 2 V or 200 mA F.S. for 2 A and 20 A ranges, 1.2 V or 120 mA F.S. for 120 A range
Parallel operation: (Closed loop mode with 61XXX or 5730A) 2 or 3 amplifiers, up to 360 A in a single phase
Parallel operation: (Standalone mode), up to 10 amplifiers, up to 1200 A in a single phase

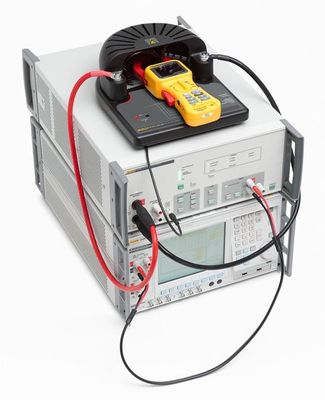

Accessory coils: 25-turn coil supports 3000 A, 50-turn coil supports 6000 A
Control communication with 6105A/6100B Electrical Power Standards or 5730A
GPIB remote operation

The 52120A is designed for users whose ability to address their calibration workload may be

limited by the output current, accuracy and drive capability of their present test equipment,

including:

Calibration professionals in a calibration/standards lab or an electrical utility
Manufacturers of power/energy instrumentation and meters, power quality analyzers or power converters
Users of electrical test and measurement equipment

The 52120A operates as a transconductance amplifier with:

5522A/5502A/5520A/5500A Multi-Product Calibrators
5730A*/5700A/5720A Multifunction Calibrator

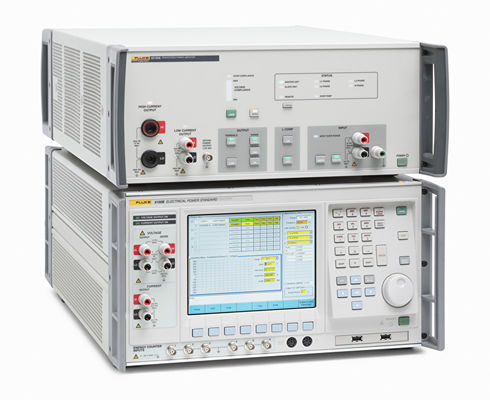

6105A*/6100B* Electrical Power Standard
5080A Multi-Product Calibrator
9100 Universal Calibration System
Any calibrator, signal generator or power supply capable of sourcing 2 V or 200 mA, dc or ac

You may also operate your 52120A in closed-loop mode, seamlessly communicating with your Fluke Calibration 6105A or 6100B Electrical Power Standard to deliver enhanced 52120A accuracy.

Operating limits
Output ranges	2 A, 20 A, 120 A (100 A dc)
Input current range	200 mA, 200 mA, 120 mA (100 mA dc)
Current gain	10, 100, 1000
Input voltage range	2 V, 2 V, 1.2 V (1.0 V dc)
Transconductance	1,10,100 Siemens
Frequency	To 10 kHz
Maximum output compliance voltage	4.5 Vrms (6.4 Vpeak)
Inductive drive capability:	1 mH load
Output isolation, current terminal to earth	600 Vrms, 850 Vpeak, dc to 850 Hz
Performance specifications
AC accuracy, closed loop with 6105A	To 140 ppm
DC accuracy, standalone	To 160 ppm
AC accuracy, standalone	To 350 ppm
Phase angle accuracy	0.006°
Load dependent phase angle shift	<0.001° @ 60 Hz
General specifications
Input line voltage range	100 V to 240 V with up to ±10 % fluctuations
Transient overvoltage	Impulse withstand (overvoltage); Category II of IEC 60364-4-443
Frequency	47 Hz to 63 Hz
Maximum consumption	< 1500 VA
Calibration Documentation	Report of calibration with data included; 17025 accredited report optional
Dimensions with feet (H x W x L)	192 mm x 432 mm x 645 mm
Dimensions with feet (H x W x L)	(7.6 inches x 17 inches x 25.5 inches)
Dimensions without feet (H x W x L)	178 mm x 432 mm x 645 mm
Dimensions without feet (H x W x L)	(7 inches x 17 inches x 25.5 inches)
Weight	25 kg (54 lb.)
Design standards and compliance	Designed to EN 61010-1: 2010, CAN/CSA 22.2 No 61010.1-04, ANSI/UL 61010-1:2004, EN 61326-1:2006 CE marked, CSA listed
Operating temperature	5 °C to 35 °C
Calibration temperature range	16 °C to 30 °C
Warm up time	1 hour
Safe operating max. relative humidity (non-condensing)	<80 % 5 °C to 31 °C ramping linearly down to 50 % at 35 °C
Operating altitude	0 m to 2,500 m
Shock and vibration	MIL-PRF-28800F class 3
Specification confidence level	99%

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
