| Brand Name: | Boonton |
| Model Number: | 4530 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

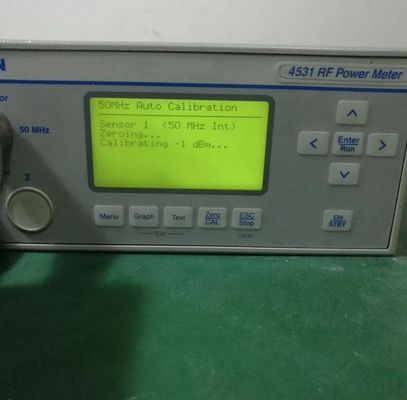

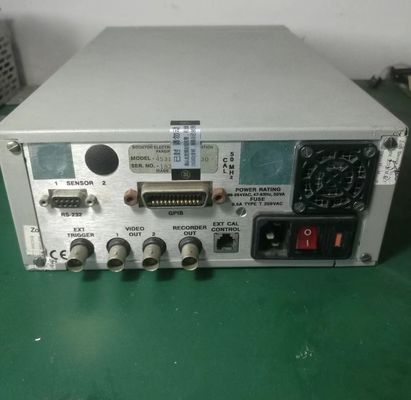

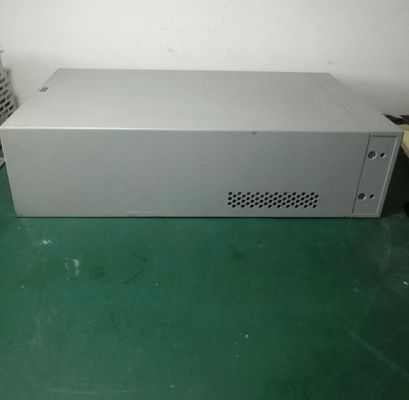

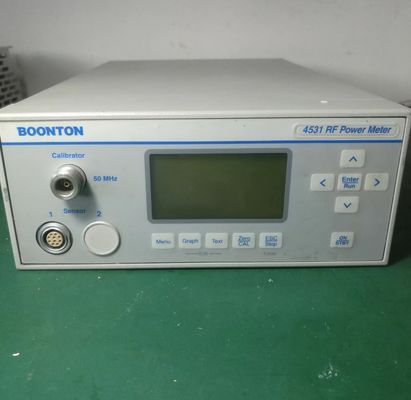

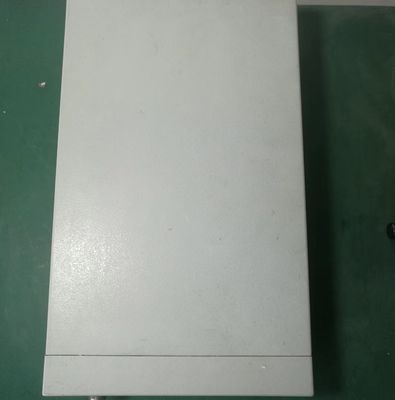

Boonton 4530 4531 Single Channel RF Peak Power Meter tested in full working conditions
Description of Boonton 4530 4531
| Quick Specifications | |
| Sensor Inputs | |
| RF channels | 1 or 2 |
| RF frequency range | 10 MHz to 40 GHz* |
| Peak pwr range | -40 to +20 dBm* |
| Modulated pwer range | -60 to +20 dBm |
| Video Bandwidth | 20 MHz* |
| Acquisition and Measurement System | |
| Time resolution | 20 ms |
| A/D Converter | 12 bit |
| DSP | 32 bit floating point |
| Trigger | |
| Ext Trig range, impedance | +/-15V, +/-50V |
| Min trig pulse width | 20 ns |
| Max trig rate | 1.8 MHz |
| Calibrator Source | |
| Internal Calibrator | 1 GHz, CW/Pulse -50 to +20 dBm |
| * Sensor Dependent, Calibrator Dependent | |
| Pulse Mode Operation (Automatic) | |
| Pulse width | Pulse rise-time |
| Pulse fall-time | Pulse period |
| Pulse repetition frequency | Pulse duty cycle |
| Pulse off-time | Peak power |
| Pulse on power | Pulse overshoot (dB or %) |
| Waveform Average power | Top level power (IEEE spec) |
| Bottom level power (IEEE spec) | |
| Marker Measurements | |
| Markers (vertical cursors) | |
| Settable in time relative to the trigger position | |
| Markers independently | |
| Average, minimum, peak power at a single time offset | |
| Pair of Markers | |
| Average, minimum, peak power over the interval between markers, power ratio between markers | |
| Options | |
| 4531 | Single Channel, GPIB, RS-232 10 kHz - 40 GHz |
| 4532 | Dual Channel, GPIB, RS-232 10 kHz - 40 GHz |
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
|
|
