| Brand Name: | Signal Hound |
| Model Number: | SM200B |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T，Western Union |

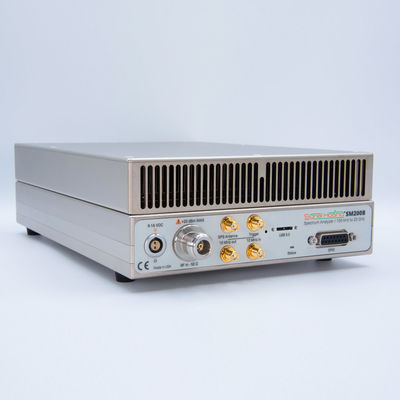

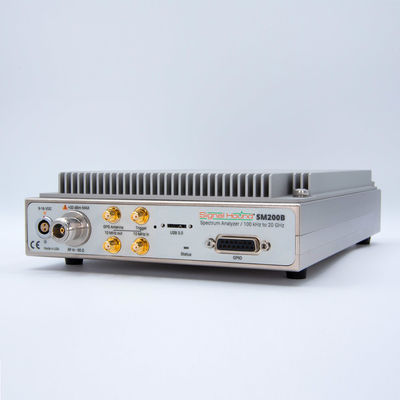

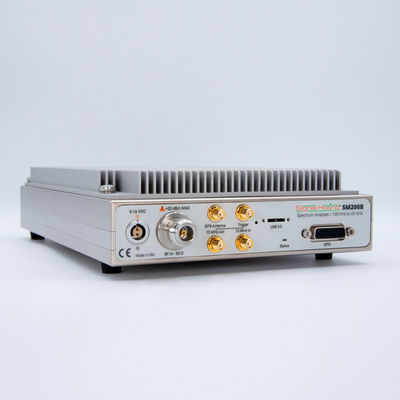

The Signal Hound SM200B Real-Time Spectrum Analyzer &Monitoring Receiver, 100 kHz to 20 GHz
THE SIGNAL HOUND SM200B: REAL-TIME SPECTRUM ANALYZER & MONITORING RECEIVER DESIGNED TO ACCURATELY PENETRATE DENSE SIGNAL ENVIRONMENTS—FAST AND EFFICIENTLY
The Signal Hound SM200B is a 20GHz real-time spectrum analyzer. This spectrum analyzer is where high performance, speed, accuracy, agility and security meet very low cost.
Excellent for 5G protocol component prototyping, verification of in-band and out of-band emissions, radar pulse analysis and more.
The SM200B is a high-performance spectrum analyzer and monitoring receiver. Tuning from 100 kHz to 20GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival even the most expensive spectrum analyzers on the market.
The SM200B offers 160 MHz instantaneous bandwidth (IBW) calibrated I/Q capture, available through block transfer of a 2-second I/Q buffer over USB 3.0 to the PC (learn more about this feature).
Signal processing is distributed between a very powerful Altera FPGA and an external PC having an Intel Core i5 processor. The Signal Hound SM200B can be readily interfaced, using its local API, to an automated monitoring system or to automated test equipment. The SM200B API provides customers the access needed to insert their own DSP algorithms into a calibrated stream of I/Q data.
APPLICATIONS - THE SIGNAL HOUND SM200B REAL-TIME SPECTRUM ANALYZER & MONITORING RECIVER
FEATURES- THE SIGNAL HOUND SM200B REAL-TIME SPECTRUM ANALYZER & MONITORING RECIVER
SM200B Real-Time Spectrum Analyzer & Monitoring Receiver
|
Preliminary Specifications |
|||||||
|
Frequency Range |
100 kHz to 20 GHz |
||||||
|
Sweep Speed |
Speed |
RBW |
|||||
|
≥30 kHz |
||||||
|
Displayed Average |
Input Frequency Range |
dBm/Hz |
|||||
|
-156 dBm |
||||||
|
I/Q Acquisition Modes |
|
||||||
|
Timebase Accuracy |
|
||||||
|
System Noise Figure (typ) |
|
||||||
|
Linearity |
IP₂ | IP₃ | |||||
|
+64 dBm |
|
+28 dBm +23 dBm |
||||
|
Amplitude Accuracy |
100 kHz to 6 GHz |
6 GHz to 20 GHz |
RBW filter shape |
||||
|
|
|
|||||
|
Residual Responses |
|
-110 dBm |
|||||
|
SSB Phase Noise at 1 GHz |
Offset Frequency |
dBc/Hz |
|||||
|
-76 |
||||||
|
Lo Leakage at RF Input |
|
-82 dBm |
|||||
|
Spurious Mixer Responses |
|
-58 dBc |
|||||
|
Sub-Octave Preselector Filters |
20 MHz to 20 GHz |
||||||
|
Synchronization |
External trigger, GPIO, Internal GPS (+/-40ns) |
||||||
|
Operating Temperature |
Standard (passive cooling)32°F to 122F (0℃ to +50℃) |
||||||
|
Size and Weight |
|
||||||
|
Power Consumption |
|
||||||
|
Interface |
USB 3.0 |
||||||
|
System Requirements |
Windows or Linux Operating System, x64 86 architecture |
||||||
|
Ordering Options |
| Standard, Temperature Range 32°F to 122°F (0℃ to +50℃) |
| Option 1, Temperature Range -40°F to 149°F (-40℃ to +65℃) |
FAQ:
Q: What delivery methods do you use, and what is the delivery time?
A: We ship via EMS, DHL, FedEx, UPS, and TNT with tracking numbers. Delivery typically takes 4-7 business days.
Q: How are duties and taxes handled?
A: Duties and taxes vary by country and are usually the buyer’s responsibility. Please check local import regulations for details.
Q: What are your payment terms?
A: We require 100% T/T payment before shipment.
Q: How can I ensure the quality of products purchased internationally?
A: We work with reputable suppliers and conduct thorough inspections before shipping. Warranties are available for most products—please check for specific terms.
Q: What should I do if my shipment is delayed?
A: Check the tracking information provided. If there are delays, contact us or the carrier directly for updates.
Q: Do you offer discounts for bulk orders?
A: Yes, discounts may be available for bulk purchases. Please contact us to discuss your specific requirements.
