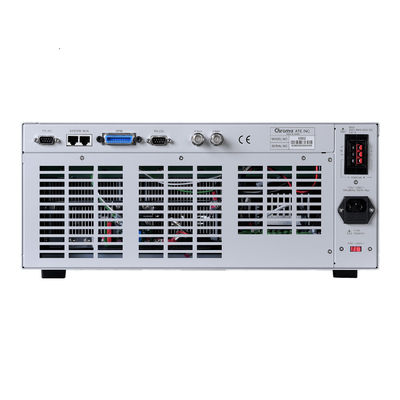

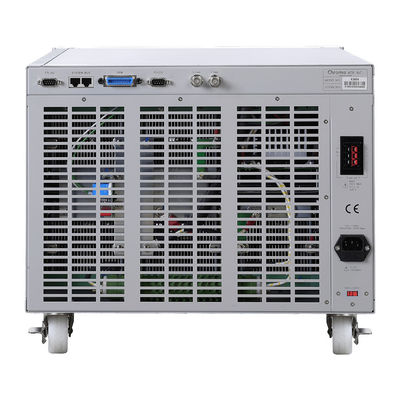

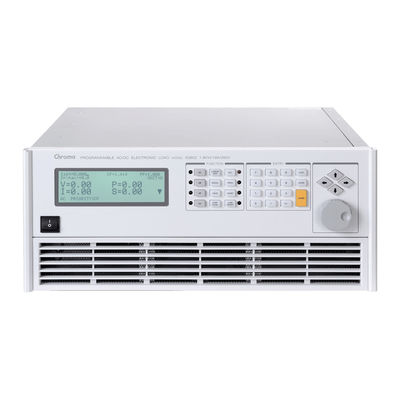

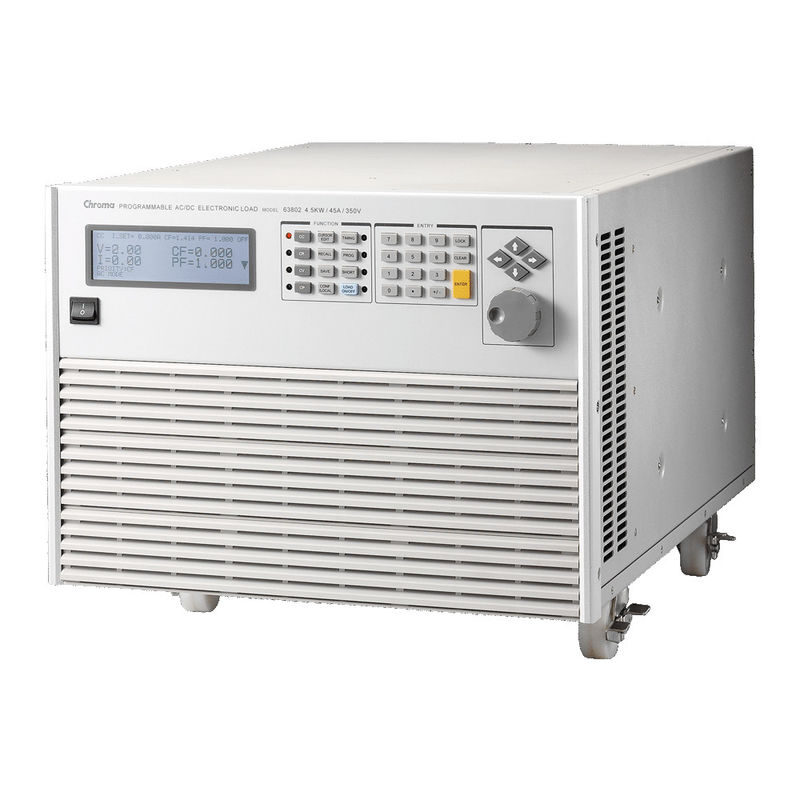

Chroma 63800 Programmable AC Electronic Load Up to 45Arms GPIB RS-232

Description of Chroma 63800 (63802/63803/63804) AC Electronic Load

AC electronic loads that can simulate load conditions under high crest factors and varying power factors with real-time compensation even when the voltage waveform is distorted. This special feature provides real-world simulation capability and prevents overstressing, resulting in reliable and unbiased test results.

The Chroma 63800 AC/DC electronic loads include built-in 16-bits precision measurement circuits to measure the steady-state and transient responses for true RMS voltage, true RMS current, true power(P), apparent power(S), reactive power(Q), crest factor, power factor, THDv and peak repetitive current. In addition to these discrete measurements, two analog outputs, one for voltage and one for current, are provided as a convenient means of monitoring these signals via an external oscilloscope.

The Chroma 63800 Loads can simulate load conditions under high crest factor and varying power factors with real time compensation even when the voltage waveform is distorted. This special feature provides real world simulation capability and prevents over-stressing thereby gives reliable and unbiased test results.

Key Features of Chroma 63800 AC/DC Electronic loads (63802/63803/63804)

• Power Rating :  1800W, 3600W, 4500W
• Voltage Range : 50V ~ 350Vrms
• Current Range :Up to 18Arms, 36Arms, 45Arms
• Peak Current : Up to 54A, 108A, 135A
• Parallel / 3-Phase Function
• Frequency Range : 45 ~ 440Hz, DC
• Crest Factor Range : 1.414 ~ 5.0
• Power Factor Range : 0 ~ 1 lead or lag (Rectified mode)
• CC, CR, CV, CP for DC Loading

• Constant & Rectified Load Modes for AC Loading

• Analog Voltage & Current Monitor

• Timing Measurement for Battery, UPS, Fuse and Breaker tests

• Short circuit simulation

• Full Protection : OP, OC, OT protection and OV alarm

• Measurement : V, I, PF, CF, P, Q, S, F, R, Ip+/- and THDv

• GPIB & RS-232 interfaces

Chroma 68000 AC AC/DC Electronic loads Applications (63802/63803/63804)

Complete AC & DC Load Simulations

Chroma's 63800 AC/DC Electronic Load is designed for both AC & DC Load Simulations. Illustrated below are the various load modes which are available:

Model Options of Chroma 68000 (63802/63803/63804)
