| Brand Name: | National Instruments |
| Model Number: | PXI-7951R |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T |

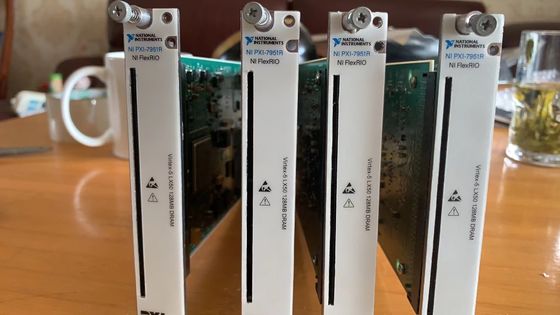

Data Acquisition DAQ Multifunction National Instruments NI PXI-7951R Virtex-5 LX30 FPGA PXI FPGA Module for FlexRIO
Descriptions:

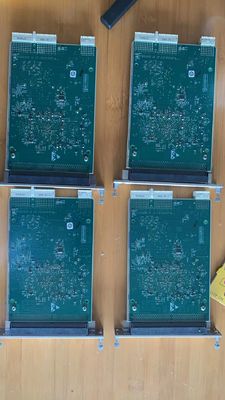

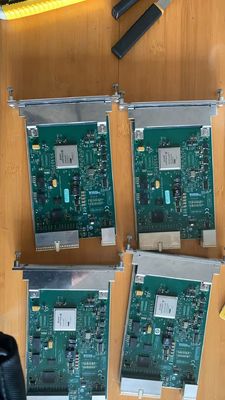

Designed for FlexRIO based data acquisition systems, the NI PXI-7951R (Part Number: 780560-01) is a Reconfigurable PXI Module with an integrated LX30 FPGA. The reconfigurable FPGA utilized in the construction of this module is from the Virtex-5 family of FPGAs. This PXI FPGA Module for FlexRIO comes featured with 32 DMA Interrupt Channels and 3 DMA Channels. The 66 GPIO (general-purpose I/O) paired channels of this module can be configured through software to operate as 132, independent, single-ended channels. Up to 400 megabytes per second single-ended (SE) configuration rates are possible with this module.
The NI PXI-7951R fully supports FPGA base clocks, arbitrations, as well as the timed loop (single cycle). The FPGA incorporated in this module can be accessed and configured with the help of the NI LabVIEW FPGA Module and has 128 kilobytes of embedded block RAM. The PXI-7951R can also be coupled with the National Instruments NI-6581 Adapter Module to fulfill the requirements of 100 MHz digital I/O.
National Instruments NI modular systems include Chassis, Power Supplies, Controllers, and Modules. The PXI, VXI, DAQ, cRIO, C Series, M Series, and more are available from Shenzhen Meigaolan Electronic Instrument Co.,Ltd
Reconfigurable FPGA
| Device | FPGA | LUTs/ Flip-Flops | DSP48 Slices (25 × 18 Multiplier) | Embedded Block RAM (kbits) |
| NI PXI-7951R | Virtex-5 LX30 | 19,200 | 32 | 1152 |
| NI PXI-7952R | Virtex-5 LX50 | 28,800 | 48 | 1728 |
| NI PXI-7953R | Virtex-5 LX85 | 51,840 | 48 | 3456 |
| NI PXI-7954R | Virtex-5 LX110 | 69,120 | 64 | 4608 |
| NI PXIe-7961R | Virtex-5 SX50T | 32,640 | 288 | 4752 |
| NI PXIe-7962R | Virtex-5 SX50T | 32,640 | 288 | 4752 |
| NI PXIe-7965R/7966R | Virtex-5 SX95T | 58,880 | 640 | 8784 |
This section lists the specifications for your NI FlexRIO FPGA module. Refer to your adapter module documentation for the adapter module specifications. NI FlexRIO FPGA modules include the following devices:
• NI PXI-7951R
• NI PXI-7952R
• NI PXI-7953R
• NI PXI-7954R
• NI PXIe-7961R
• NI PXIe-7962R
• NI PXIe-7965R
• NI PXIe-7966R
General Information:
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
