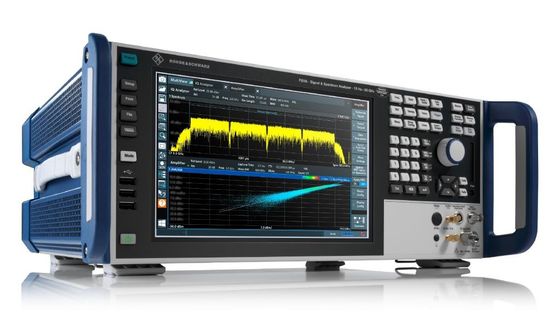

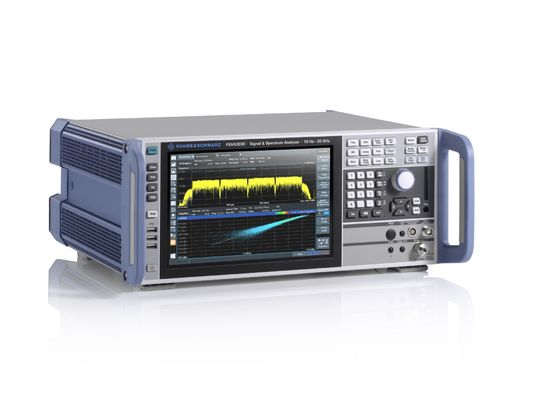

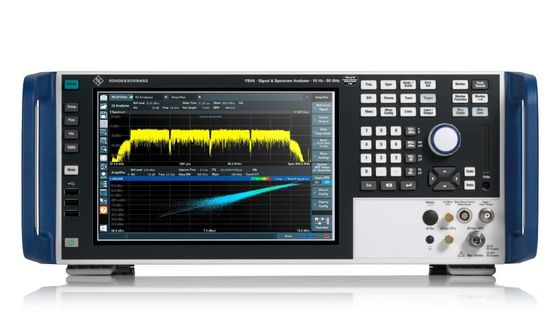

R&S FSV and R&S FSVA signal and spectrum analyzers from Rohde & Schwarz extend frequency up to 50 GHz

With the introduction of the new variants R&S FSV3050 and R&S FSVA3050, the frequency range of this signal and spectrum analyzer family is now extended to 50 GHz. An additional option empowers the extension of signal analysis even up to 54 GHz. The high-speed analyzers for lab and production are ideal for 5G NR testing – now also supporting the full FR2 frequency range up to 52.6 GHz and applications in the aerospace & defense industry. The solution will be shown at EuMW from September 27 to 29, 2022 at booth D18 of the Milano Convention Centre.

The FSVA3050 is equipped with an event-based GUI to save a screenshot or I/Q data whenever a predetermined event occurs. It integrates an embedded SCPI recorder to make it much easier to create executable scripts. This analyzer supports cloud-based testing and makes it easier to create executable scripts using programming languages such as C++, Python, or MATLAB. It has a built-in solid-state drive and supports data transfer via standard USB serial interfaces.

The FSVA3050 signal and spectrum analyzer is ideal for design and test labs, 5G NR testing, WLAN testing, and other wireless verification applications. It requires an AC supply of 100-240 V and consumes 200 W of power. This spectrum analyzer can be operated at an altitude of up to 4600 m and has undergone multiple EMC and flame-retardant safety test procedures for high reliability.

Key features of Rohde & Schwarz signal and spectrum analyzers FSV3050

• Frequency range from 2 Hz to 4, 7.5, 13.6, 30, 44, 50/54 GHz
• Analysis of bandwidth up to 1 GHz
• SSB phase noise at 10 kHz offset (1 GHz): –127 dBc/Hz
• GUI with multi-touch, SCPI recorder and event-based actions
• Options for analog and digital signal analysis, including 5G NR

Ready for 5G and other wireless standards

The R&S®FSVA3000 signal and spectrum analyzer is ideal for evaluating wireless communications signals in R&D, system testing, verification and production. With 400 MHz of analysis bandwidth, it can capture four neighboring 5G NR carriers at once. The dedicated options for 5G NR signal analysis enable EVM values better than 1% for a 100 MHz wide carrier at 28 GHz.

5G NR signal analysis

Analysis of a 5G NR signal with the R&S®FSV3-K144 (downlink) and R&S®FSV3-K145 (uplink) options

Best-in-class performance and feature set

Many measurement applications in the wireless, A&D and component industries require low phase noise, wide analysis bandwidth and high dynamic range. The R&S®FSVA3000 signal and spectrum analyzer is the perfect tool for the production and verification of wireless communications systems and their components and also for service and maintenance applications in the A&D market.

Captures ten 5G NR carriers at once

The maximum analysis bandwidth of 1 GHz makes it possible to simultaneously capture up to ten 5G NR carriers of 100 MHz bandwidth each.

List of Options of FSVA3050
