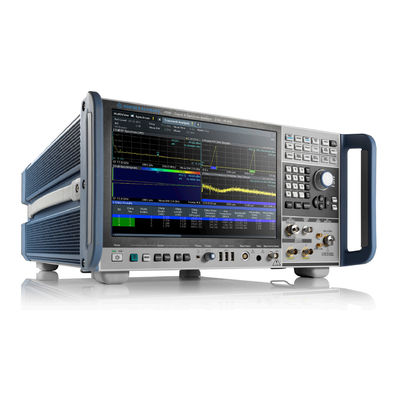

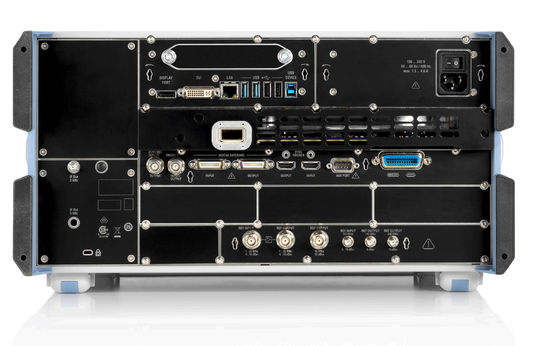

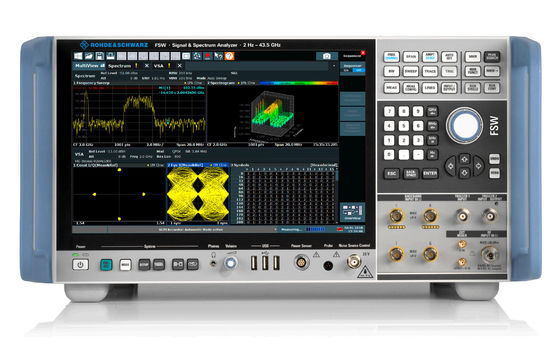

Features of the R&S FSW13 Signal and Spectrum Analyzer:

The high performance Rohde & Schwarz (R&S) FSW13 Signal and Spectrum Analyzer is designed for convenience, accuracy and speed. Its unique touchscreen, straightforward, multiview result display, and optimized user guidance makes operation of the R&S FSW13 Analyzer efficient and convenient. With its unmatched phase noise, unparalleled dynamic range for spurious measurements, and high sensitivity even at low frequences, the R&S FSW13 guarantees high accuracy. Efficient measurement rates, rapid sweep times, quick switchover between instrument setups, makes operation fast and easy.

Features of the R&S FSW13 Signal and Spectrum Analyzer:

• Excellent dynamic range for spurious measurements because of low DANL
• Harmonic measurements made easy and accurate due to integrated highpass filters:
  • High sensitivity even at low frequencies
  • Unparalleled dynamic range up to 1 GHz with separate receive path
• Up to 500 MHz analysis bandwidth
• High spurious-free dynamic range of > 100 dBc
• Large I/Q memory depth for seamless recording of long signal sequences
• Efficient operation with optimized user guidance
• MultiView: multiple results available at a glance
• Ideal for measuring oscillators for radar and communications applications as well as for analyzing radar systems:
  • Fast identifcation and analysis of spurious emissions
  • Measuring pulse parameters at the touch of a key
  • Detection of widespread frequency-hopping signals
  • Analyzing short pulse rise and fall times
• Identifying interaction between signals
  • Multistandard radio analyzer (MSRA)
  • Multistandard realtime analyzer (MSRT)
• High measurement rates and fast sweep times with sweep rates of up to 1000 sweeps/s
• Fast switchover between instrument setups
• Efficient measurement functions speed up operation
• Integrated support of R&S®NRP-Zxx power sensors

Specifications of the R&S FSW13 Signal and Spectrum Analyzer:

• Frequency:
  • Frequency range: 2 Hz to 13.6 GHz
  • Aging of frequency reference: 1 x 10-7/year
    • With R&S®FSW-B4: 3 x 10-8/year
• Bandwidths:
  • Resolution bandwidths:
    • Standard filter: 1 Hz to 10 MHz
      • With R&S®FSW-B8: 80 MHz
    • RRC filter:
      • NADC: 18 kHz
      • TETRA: 24.3 kHz
      • 3GPP: 3.84 MHz
    • Channel filter: 100 Hz to 5 MHz
    • Video filter: 1 Hz to 10 MHz
  • I/Q Demodulation bandwidth: 10 MHz
    • With R&S®FSW-B28: 28 MHz
    • With R&S®FSW-B40: 40 MHz
    • With R&S®FSW-B80: 80 MHz
    • With R&S®FSW-B160: 160 MHz
    • With R&S®FSW-B320: 320 MHz
    • With R&S®FSW-B500: 500 MHz
• Displayed average noise level (DANL):
  • 2 GHz: -156 dBm (1 Hz) typical
  • With R&S®FSW-B13: -159 dBm (1 Hz) typical
  • 8 GHz: -156 dBm (1 Hz) typical
  • 20 GHz: -150 dBm (1 Hz) typical
  • DANL with preamplifier (with R&S®FSW-B24):
    • 8 GHz -169 dBm (1 Hz) typical
    • 20 GHz -166 dBm (1 Hz) typical
  • DANL with noise cancellation, preamplifier off, 2 GHz: -169 dBm (1 Hz) typical
• Intermodulation:
  • Third-order intercept (TOI):
    • f < 1 GHz: +30 dBm (typical)
    • f < 3 GHz: +25 dBm (typical)
    • 8 GHz to 26 GHz: +17 dBm (typical)
    • 13.6 GHz to 40 GHz: +15 dBm (typical)
• WCDMA ACLR dynamic range:
  • With noise cancellation: 88 dB
• Phase noise:
  • 10 kHz offset from carrier:
    • 500 MHz carrier: -140 dBc (1 Hz) typical
    • 1 GHz carrier: -137 dBc (1 Hz) typical
    • 10 GHz carrier: -128 dBc (1 Hz) typical
• Total measurement uncertainty: 8 GHz < .04 dB
