| Brand Name: | Rohde and Schwarz |
| Model Number: | FSL18 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

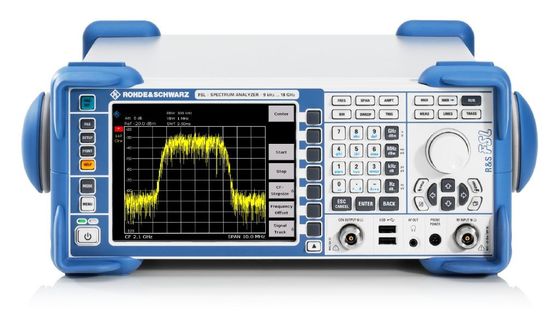

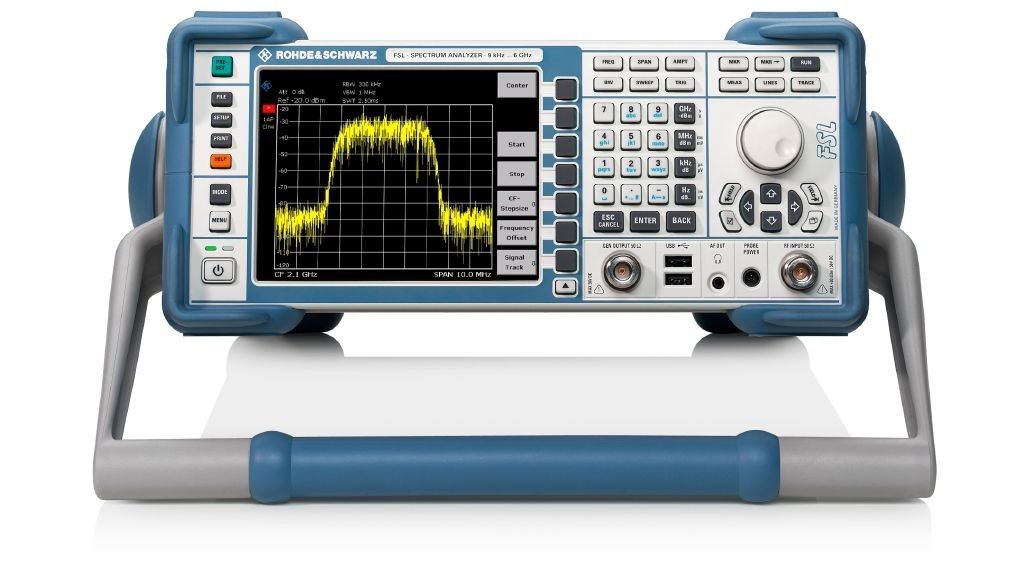

Description of FSL18 Lightweight and compact Spectrum Analyzer 9kHz-18 GHz
The spectrum analyzer R&S FSL leads its class with respect to its large number of standard functions. The R&S®FSL is an extremely lightweight and compact spectrum analyzer. Its low weight and optional battery/DC power make it the ideal instrument for the lab and in the field. The R&S®FSL features many measurement options for analyzing signals in line with common standards. With an optional tracking generator, scalar network analysis up to 18 GHz is possible.
Tracking generator for directional power measurements with Model .13
Full choice of detectors: max, min, auto-peak, sample, RMS, average, quasi-peak
CP/ACP/fast ACP measurement functions with a host of predefined standards (see ACP screenshot)
Time domain power measurement
Measurement of carrier-to-noise ratio C/N or C/N0 referenced to 1 Hz or channel bandwidth
CCDF: measurement of crest factor and amplitude probability function
Automatic test routines for: - Occupied bandwidth (OBW) - Third order intercept point (TOI) - AM modulation depth
Adjustable number of trace points, max. 32001
Editable limit lines including PASS/FAIL indication
Level units: - dBm, dB?V, dBmV, dB?A, dBpW, V, W, A
Frequency counter featuring resolution of 1 Hz with measurement time of 50 ms
Phase noise and noise marker with dBm/Hz and dBc/Hz results
n-dB down functionality for fast determination of bandwidth
Channel filters, shape factor <2
EMI filters: 200 Hz (optional), 9kHz, 120 kHz
FFT filters from 300 Hz to 30 kHz, optional 1Hz to 30 kHz
WLAN option for TX measurements on 802.11a, b, g, j signals
Firmware option for measurements on Bluetooth transmitters, including EDR
USB interface
Tracking generator (Freq. 1 MHz to 6 GHz; output -20 dBm to 0 dBm)
Key specifications of FSL18 Spectrum Analyzer
Frequency range 9 kHz to 3/6/18 GHz
Tracking generator for 3 GHz and 6 GHz models
Wide I/Q demodulation bandwidth of 20/28 MHz
Low measurement uncertainty <0.5 dB
Portable for field applications
Compact and lightweight at only 7 kg
Optional battery operation
Full scope of spectrum analysis functions
List of Options for FSL18 Spectrum Analyzer
| B10 | GPIB interface |
| B22 | RF preamplifier, gain 20 dB (software license) |
| B30 | DC power supply 12 - 28 V |
| B31 | NiMH battery pack |
| B4 | OCXO reference frequency |
| B5 | Additional interfaces video/IF-output, power meter 28 V - DC for noise source |
| B6 | TV trigger (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license) |
| B7 | Narrow resolution filters, 10 Hz - 300 Hz (software license) |
| B8 | Gated sweep function (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license) |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| DCV-1 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| DKD | FSL3 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| K14 | Spectrogram measurement, application firmware (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| K20 | Application firmware for cable TV and TV measurements (software license) |
| K30 | Application firmware for noise figure and gain measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| K400 | RFEX-Launcher for FSL Required for installation and operation of EMF software RFEX on FSL |
| K7 | Analogue demodulation AM/FM/PM (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license) |
| K72 | 3GPP Code Domain Power measurements for base station (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| K8 | Application firmware for TX measurements acc. to Bluetooth v. 1.1 and 2.0 (EDR) (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| K82 | CDMA2000® base station analysis (software license) |
| K84 | Analysis of 1xEV-DO base station signals (software license) |
| K9 | Power sensor measurements with NRP (software license) |
| K91 | Application firmware for WLAN 802.11A,B,G measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| K91N | Upgrade of FSL-K91 to 802.11n (software license) |
| K92 | Application firmware for WiMAX# 802.16, OFDM measurements (software license) |
| K92U | Upgrade from R&S®FSL-K92 to R&S®FSL-K93 (software license) |
| K93 | Application Firmware for WIMAX# 802.16 OFDM/OFDMA Measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) |
| R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12 |
| R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12 |
| R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12 |
| R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12 |
| Z3 | Soft carrying bag |
| Z4 | Additional charger unit for FSL-B31. Allows charging the battery without FSL |
| ZZA-S334 | Adapter for BW2000 3HU 3/4 cabinet with impact protection |
Your benefits
One instrument for multiple tasks
Can take it with you everywhere
Signal analysis functions
Features
► Spectrum analysis
► Power meter
► Analog and digital signal analysis Scalar network analysis
► Carrying handle and low weight
► Optional battery pack
► Optional 12/24 V DC power supply
► Many measurement options for analyzing signals in line with IEEE (WLAN, WiMAX™ and Bluetooth®) and 3GPP standards 1)
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
